humanloop

A human in the loop on autonomous agents.

How it works

  1. 01

    Blocks

  2. 02

    Pulses

  3. 03

    Turns

  4. 04

    Resumes

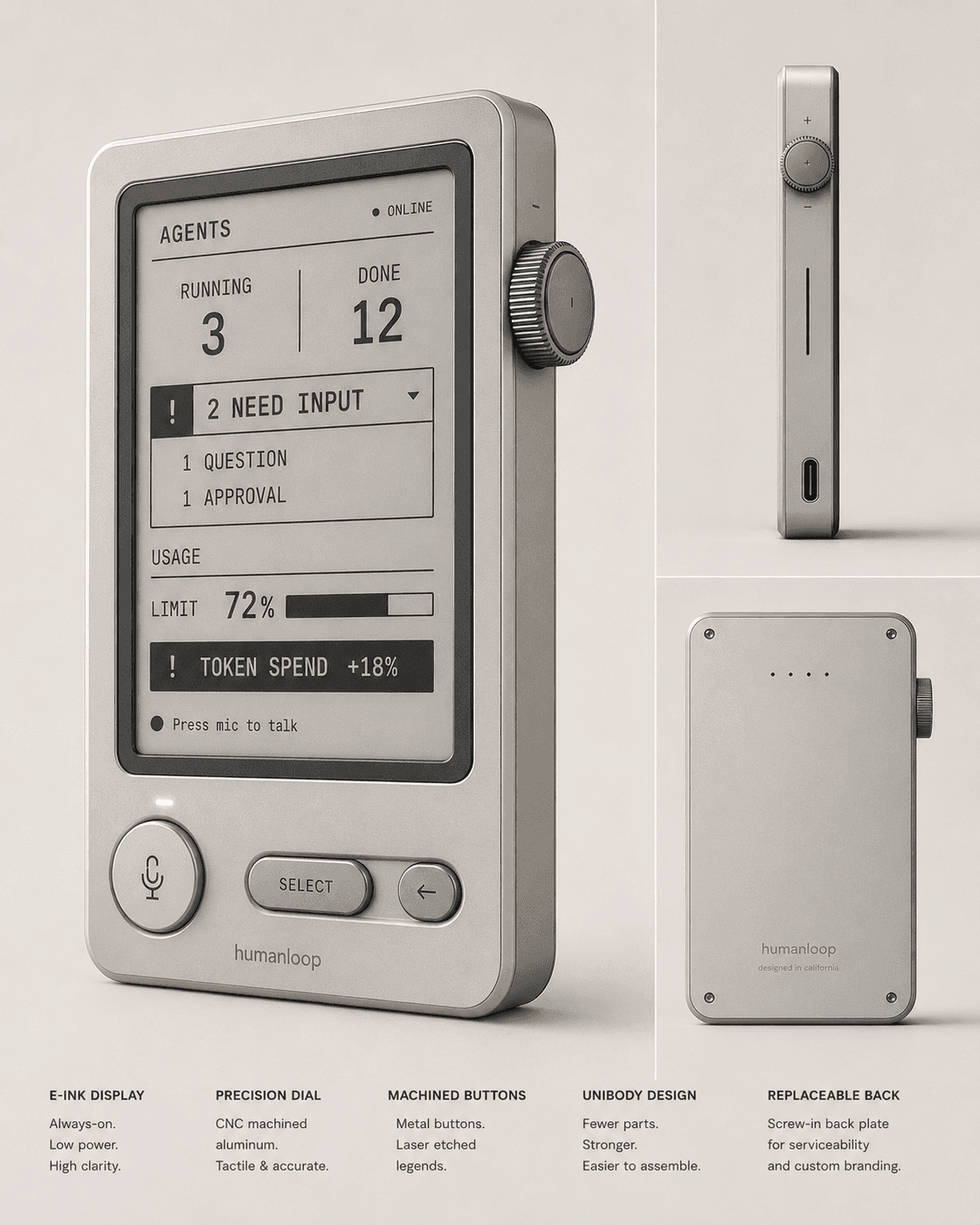

Specs

ph7 — P1 build. First batch ships 10.10.2026.

Display
4.2" e-paper, 400×300, 1-bit, SPI
Compute
Raspberry Pi Zero 2 W — quad-core A53, 512MB
Input
Detented rotary encoder (24 pulses) + 2 machined buttons
Microphone
I2S MEMS, push-to-talk only — live only while held
Haptics
LRA + DRV2605L driver, tuned through the aluminium body
Connectivity
2.4GHz Wi-Fi, WPA2
Battery
5000mAh LiPo, 18.5Wh — runtime measured before ship, not claimed yet
Charging
USB-C, bottom edge, 5V
Body
CNC 6061 aluminium unibody, natural anodized
Envelope
~105 × 145 × 30mm
  • Push-to-talk mic — live only while held, no wake word, nothing buffered
  • Always-on e-ink — holds the last frame at zero power, no backlight
  • One revocable token on-device — no provider API key ever reaches it
  • An approval resolved in under 10 seconds from first glance
  • Every input confirmed by haptic within 150ms
  • Back plate unscrews — for service, or for custom branding

Exploded view

CAD export pending

01Unibody shellCNC 6061 aluminium02Display lens + panel1mm lens, 400×300 e-paper03Internal chassisPrinted resin, holds the stack04Electronics stackPi Zero 2 W + HAT05Battery5000mAh LiPo06Back plateCNC 6061, antenna window

Loop Cloud

The part that works without hardware.

Pre-order

No payment yet. First batch ships 10.10.2026 — reserve now for first access.
